Rofin-Sinar Powerline E

Inquire
Manufactured by:
Rofin-Sinar
Model number:
Powerline E
Year manufactured:
2006
Condition:
Very good condition
Asking price:
$12,500
Included extras:
 Manual
 Warranty
 Demonstratable
 Training
 Installation
Parts and accessories:
Includes: Laser power meter // Computer
Additional information:

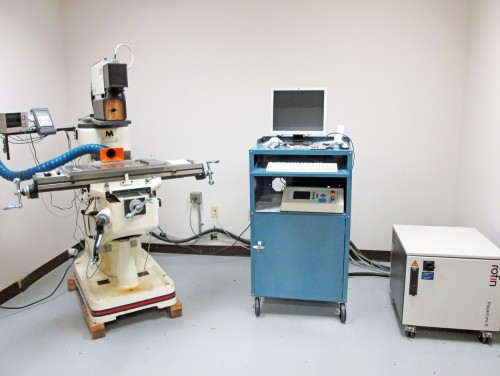

DESCRIPTION OF LASER SYSTEM: GERMAN MADE ROFIN 20 WATT, SOLID STATE DIODE PUMPED, CLASS 4 // BEAM OUTPUT IS NEAR-INFRARED (1064nm) // BEAM SPOT SIZE IS APPROXIMATELY .003 // VISUAL LASER MARKER SOFTWARE. // ACCEPTS .DXF DATA AS WELL AS OTHER FORMATS. OR, MARKING FILES CAN BE CREATED DIRECTLY IN THE SOFTWARE. // IT WILL DO BAR CODES AND SEQUENTIAL NUMBERING. // POWER SETTINGS, BEAM SPEED AND HATCH ANGLES ARE EASILY MANIPULATED. // OPERATES ON 220V, SINGLE PHASE // MOUNTED ON HEAVY KNEE-MILL TYPE BASE. // MAIN FORTE IS METAL MARKING. // 6 INCH FOCAL LENGTH YIELDS A SCANNED MARKING AREA SLIGHTLY OVER 9" X 9" SQUARE. // FOR LARGER MARKING AREAS THE LAYOUT CAN BE TILED AND THE MILL TABLE USED TO MOVE TO THE NEXT MARKING AREA. // A MITUTOYO DIGITAL READOUT IS USED FOR PRECISE X AND Y MOVEMENTS. // A RED HeNe LASER IS EMPLOYED TO AID IN SETUPS. // OPERATES IN BOTH PULSED (0-150 KHz) AND CW MODES. // LASER CAVITY IS WATER COOLED. NO SEPARATE CHILLER IS NEEDED AS THE HEAT EXCHANGER AND PUMP ARE IN THE MAIN CABINET WITH THE MAJORITY OF THE ELECTRONICS.
Laser Type I:
Diode Pumped
Marking Area:
9 x 9 inches (Scanned field)
Wavelength(s) (nm):
1064 nm
Pulse Characteristics I:
CW & Q-Switched
Laser Rated Power (watts):
20
Laser Cooling:
Water (heat exchanger is inside power supply.)
System XYZ Travel (inches or ):
X: 24", Y: 11", Z: 10"
System Controller & Software:
Visual Laser Marker
System Input Power I:
220 VAC Single Phase
Laser Manufacturer:
Rofin-Sinar
Laser Actual Power (watts):
estimate 20 watts
Item Number:
7335
