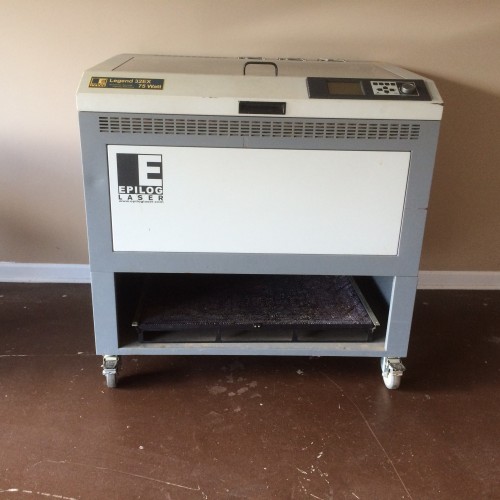

Epilog Legend 32EX
Inquire- Manufactured by:
- Epilog
- Model number:
- Legend 32EX
- Year manufactured:
- 2005
- Condition:
-
Good condition
- Asking price:
- $9,000
- Included extras:
- Manual
Warranty
Demonstratable
Training
Installation - Parts and accessories:
- Includes: Extra computer module - Used, ask for details // 4' lens assembly - Value $130.00 // Horizontal bar - Value $90.00 // Troubleshooting tester - Value $180.00 // Honey comb grid - Value $600.00 // Air assist pump - Value $60.00 // Exhaust system - Value $75.00
- Equipment location:
- Georgia
- Additional information:
- Can demo the system locally in Georgia and/or could Skype if needed for long distance. // I used Corel Draw X7. // The Epliog 2005 75 watt laser tube was replaced in 2013 // Max Material Thickness is 9" (228 mm)// Max material to be engraver size: 37" x 21" (940 x 533 mm) // Laser Control Display Panel 4" x 3": this LCD displays job graphic, stored file names, speed, power, run time, and more. It has drop-down menus providing user control of all laser settings, calibration, and special features. // Intelligent Memory Buffer stores unlimited files up to 32 MB. Rolling buffer allows files of any size (32 MB and larger) to be engraved. // Operating Modes: Optimized raster engraving, vector cutting or combined raster/vector mode. // Motion Control System High-speed, continuous-loop, DC servo motors using linear encoding technology for precise positioning. // Laser Source: State-of-the-art, digitally controlled, air-cooled CO2 laser tubes are fully modular, permanently aligned and field replaceable. // X-Axis Bearings Ground and polished stainless steel, NeverWear„¢ Bearing system. // Belts: Advanced B-Style doublewide Kevlar precision drive belts. // Resolution: User controlled from 150 to 1200 dpi. // Speed and Power Controls: Computer or manually controlled speed and power in 1% increments to 100%. Vector color mapping links speed and power settings to any RGB color. // Print Interface: 10 Base T Ethernet or Parallel connection. Compatible with Windows XP/2000. // Size and Weight 42" wide x 32.5" deep x 42" high (1067 x 826 x 1067 mm); 375 lbs (172 kg) // 120 watt cabinet is 34.5" deep (876 mm) // Standard Features: Air Assist (pump optional), Auto Focus, Red Dot Pointer, 2" focus lens, relocatable home, flash upgrade electronics. // Electrical Requirements: Auto-switching power supply accommodates 110 to 240 volt, 50 or 60 Hz, single phase, 15 amp AC. // Ventilation System is an external exhaust to the outside with an output diameter at machine of 6". // Safety: CDRH Class IIIa
- Engraver Type:
- Raster and Vector
- System Input Power I:
- 120 VAC or 220 VAC
- Laser Rated Power (watts):
- 75
- Laser Cooling:
- Air
- Engraving field size:
- 32" x 20" (812 x 508 mm)
- Laser Manufacturer:
- Epilog
- Laser Actual Power (watts):
- 75+ watts
- Engraving Software:
- see above
- Item Number:
- 6855
